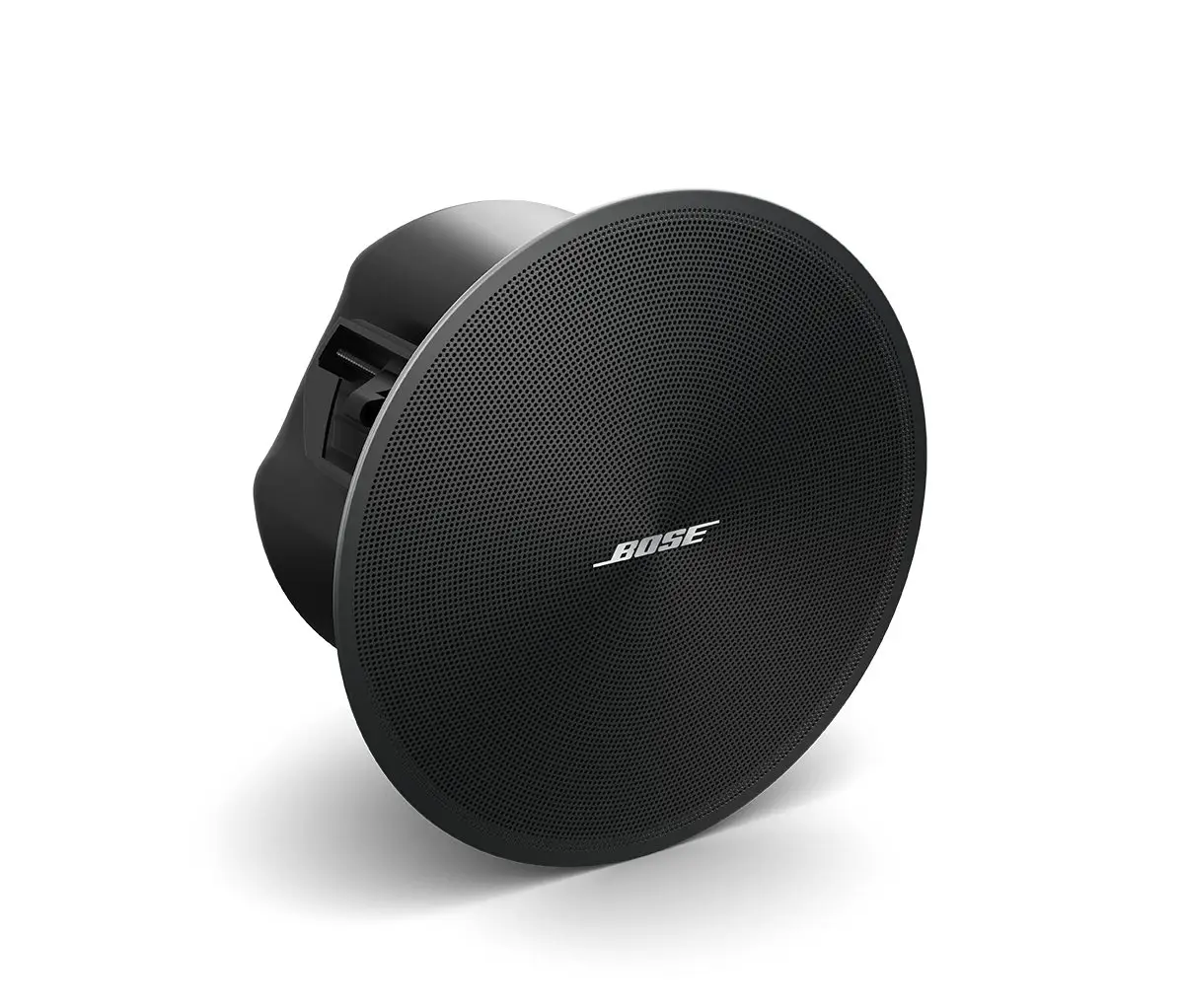

BOSE DesignMax DesignMax DM3C In-Ceiling Speakers (Pair)

Item No:

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.

Check our Shipping Policy and Return Policy.

Description

  • Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Additional information

Weight 20 lbs
DM3C Color

BOSE DesignMax DM3C Black (829708-0110), BOSE DesignMax DM3C White (829708-0210)

Specifications

TECHNICAL SPECIFICATION

COMPLIANCE
  • Safety Agency Ratings
  • UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant
PHYSICAL
  • Colors
  • Black (RAL 9005), white (similar to RAL 9003), paintable
  • Cutout Diameter
  • 8.2 in (208 mm)
  • Enclosure Material
  • Engineered-plastics front baffle with integrated steel-formed backcan
  • Environmental Testing
  • Indoor only
  • Grille Material
  • Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
  • Logo
  • Rotatable, removable
  • Mounting/Rigging Provisions
  • (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
  • Net Weight
  • 5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single)
  • Operating Temperature
  • 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (H×W×D)
  • 10.0 in × 6.0 in (255 mm × 154 mm), loudspeaker diameter × depth / 8.0 in × 5.7 in (203 mm × 144 mm), backcan diameter × depth
  • Shipping Weight
  • 19.2 lb (8.7 kg), pair
PERFORMANCE
  • Frequency Range (-10 dB)
  • 75 Hz – 20,000 Hz
  • Coverage, Horizontal
  • 135° conical
  • Maximum SPL at 1 m
  • 98 dB
  • Nominal Impedance
  • 8 Ω (transformer bypass)
  • Power Handling, Continuous
  • 30 W
  • Power Handling, Peak
  • 120 W
  • Recommended Signal Processing
  • Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m)
  • 83 dB
  • Transformer Taps, 100V
  • 6, 12, 25 W, bypass
  • Transformer Taps, 70V
  • 3 W, 6 W, 12 W, 25 W, bypass
  • Coverage, Vertical
  • 135° conical
TRANSDUCERS
  • Crossover Frequency
  • 1.7 kHz, passive 2-way crossover
  • Driver Protection
  • Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter
  • High-Frequency Transducer Quantity and Size
  • 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
  • Low-Frequency Transducer Quantity and Size
  • 1 × 3.25 in (83 mm) woofer

INCLUDED IN PACKAGING

  • (1) cutout template
  • (1) installation guide
  • (2) DesignMax DM3C loudspeakers
  • (2) grilles
  • (2) tile bridges

Downloads

BOSE DesignMax DM3C Technical Data Sheet
BOSE DesignMax DM3C Installation Guide
BOSE DesignMax Painting Guide
